Magnesium Anode 44W Bare

Corrpro manufactures a full line of aqueous magnesium anodes using the H-1 alloying standard. The anodes produce an open circuit potential of 1.53 - 1.55 volts, and are cast into circular, rectangular, square, and teardrop shapes. Mounting designs on Corrpro’s aqueous magnesium anodes were created to address a variety of installation possibilities. Anodes typically associated with condenser applications are constructed with a galvanized steel pipe core for mounting on metal studs. Hull-type anodes, on the other hand, are available with cast in galvanized steel mounting straps for weld or bolt-on attachment.

In addition to these options, the aqueous magnesium anodes can be supplied with a plastisol coating. By employing this special barrier, current output and direction can be controlled, which not only improves the anode’s performance, but also extends its life.

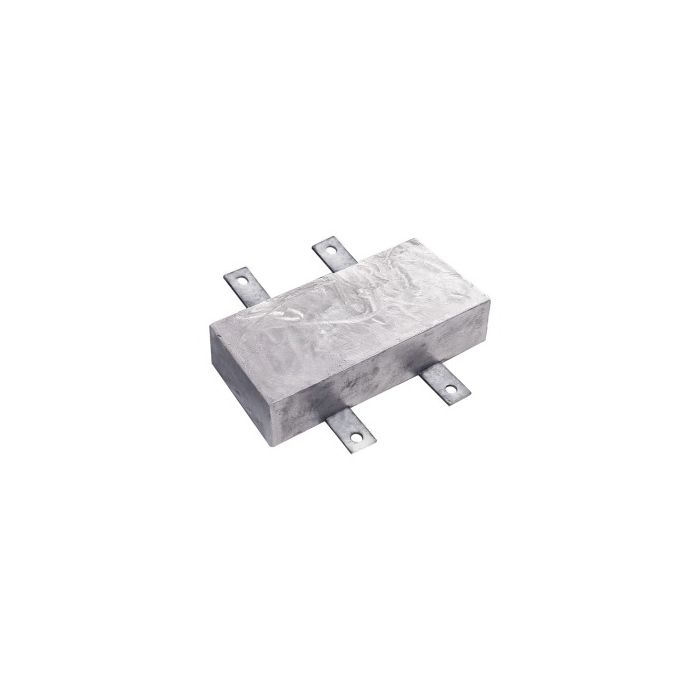

The 44W bare magnesium anode offers a high-capacity solution for cathodic protection systems covering expansive or highly corrosive areas. Made from premium-grade magnesium, it's well-suited for tanks, pipelines, and marine applications.
