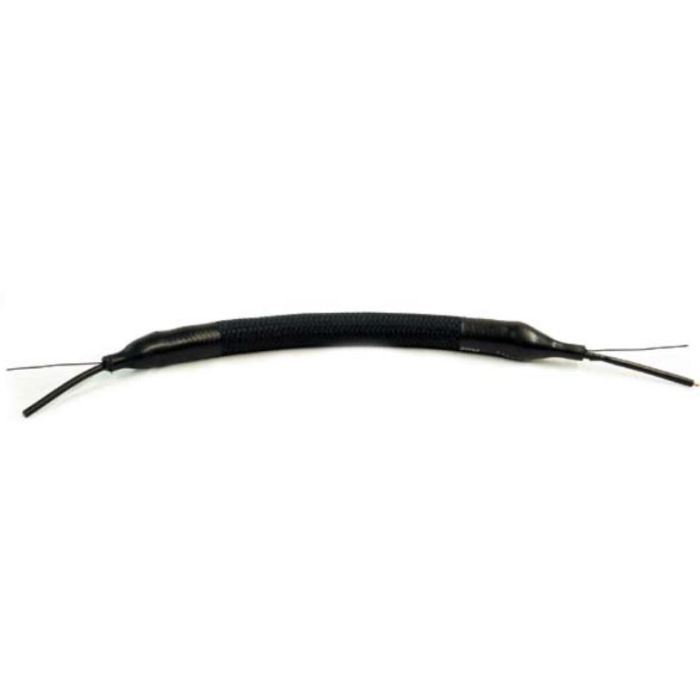

CorrFlex-001 Linear Mixed Metal Oxide (MMO) Anode with #6 Halar Lead Wire

Corrpro’s CorrFlex anode system brings together the lightweight and high performance characteristics of copper-cored, mixed metal oxide anodes with a rugged, field-tested fabric jacket filled with calcined petroleum coke. Corrpro offers a full line of CorrFlex anode systems that can be custom designed to suit virtually any linear anode application. CorrFlex utilizes copper-cored, mixed-metal oxide, and titanium based anodes that enhance the linear conductivity of the anode element. Because the mixed metal oxide anode is surrounded by high carbon content powder backfill, the CorrFlex anode system can be installed without the need for additional carbonaceous backfill. Connections to the continuous insulated conductor are made redundantly every 50 feet, further ensuring a minimum voltage drop along the entire anode length. CorrFlex systems come standard with 40 feet 12.2m of insulated conductor “pigtails” at each end, to allow for bi-directional power feeds. The proprietary CorrFlex manufacturing process assures that the anode assembly is centered in the backfill. The outer jacket of the CorrFlex package is a chlorine/low pH resistant porous fabric that is covered with a protective cross braid for superior abrasion and damage resistance. CorrFlex comes standard in 1,640-foot 500m lengths. Custom lengths can also be made to order. The continuous standard cable is #8 or #6 AWG, seven strand copper cable with chlorine resistant HALAR insulation. The overall nominal diameter of the CorrFlex packaged system is 1-3/8 inches 35mm. CorrFlex-001 is a flexible anode system incorporating a conductive polymer anode jacket and a #6 Halar-insulated copper lead wire. Used for deep or horizontal anode beds in impressed current cathodic protection systems, it provides long-term, even current discharge.
